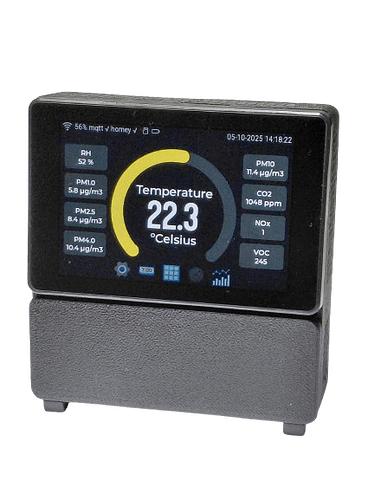

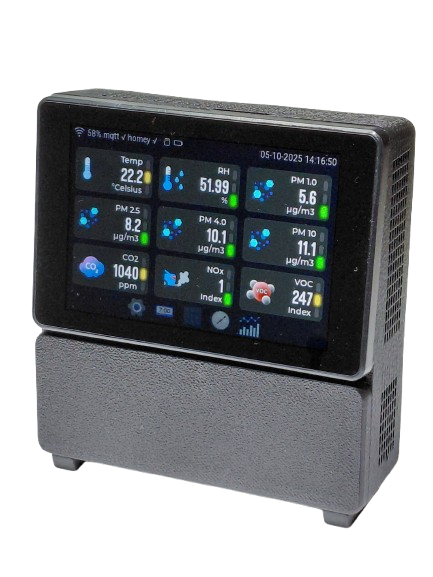

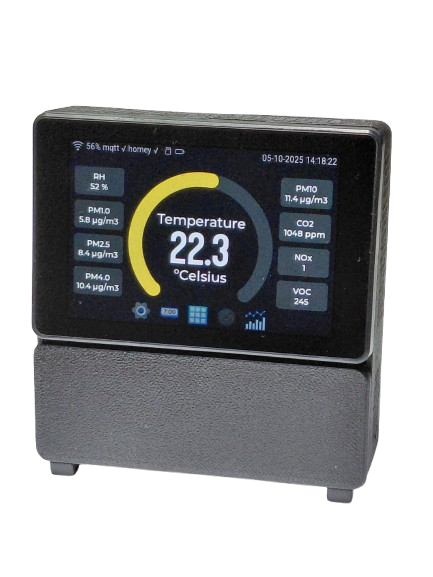

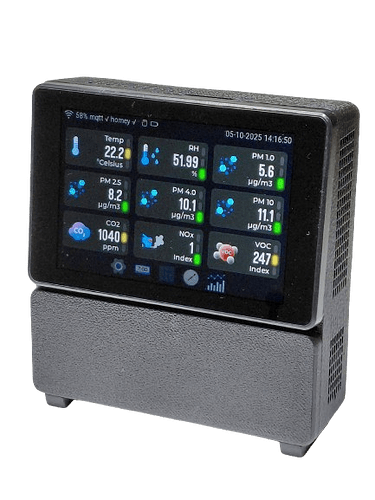

- MoreSense MS-07 will soon be available on Tindie
- 3.5 inch IPS 480 x 320 capacitive touchscreen
- ESP32 S3 MCU
- Measures 9 air quality parameters
- Clock
- Powered by the new Sensirion SEN66 sensor

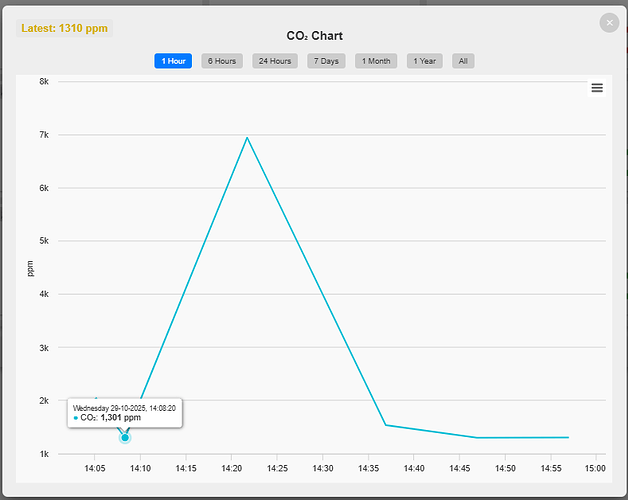

- Built-in charts with 24-hour history, and over one year of data accessible via the web interface**
- Unlimited measurement storage (CSV format) on microSD card
- User-configurable alarm thresholds (orange & red) for each measurement parameter
- User-configurable HTTP commands per parameter for threshold exceedance and recovery events (e.g., to control HVAC devices via WiFi smart plugs).
- Integrates with Home Assistant, Domoticz, and many other home automation systems via MQTT or REST
- Compatible with Homey through the HomeyDuino app

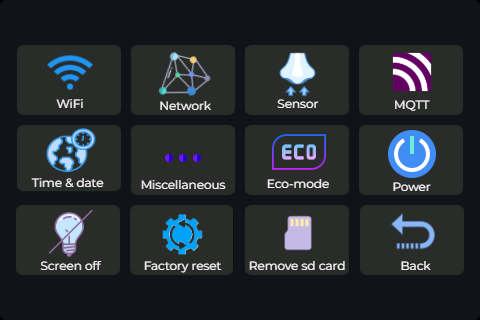

- Comprehensive web interface
- Panasonic 18650 Li-Ion 3000 mAh battery
- Eco mode for extended battery life, with a user-configurable measurement interval. The sensor wakes up at each interval, takes measurements, and then returns to deep sleep.
- User-selectable WAV files for alarm sounds
- Price will be around $ 160.00
- …and many more features
Hi @Lars,
Thanks for sharing! I have a few questions:
-
You mentioned extended battery life - what is the estimated range of battery life (with the lowest measurement intervals vs the highest)?
-
Do you know when this will go on sale?
-
Can it be wall mounted? It looks like it would be the perfect device for this.
I think it’s quite an interesting device and look forward to hearing more.
Hi Ethan,
Thank you for your interest! I haven’t tested the battery life in eco mode yet, but each cycle consumes about 4 mAh. So theoretically, the 3000 mAh battery could last for around 750 cycles, which is about one month if it runs at one-hour intervals. But that is theory, I think it is more realistic to divide the time by two.
At the moment I am working on the user manual which will probably take about 2-3 weeks from now. So after that it will go on sale.

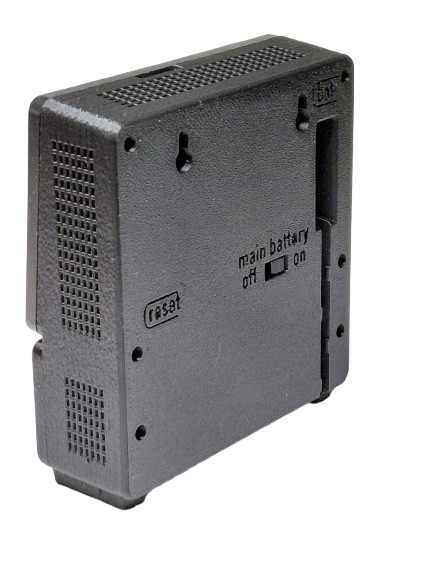

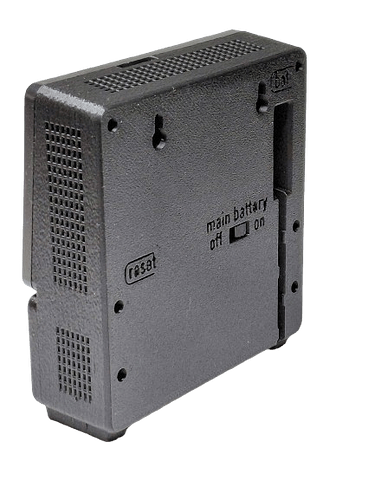

As you can see the sensor has wall mounts.

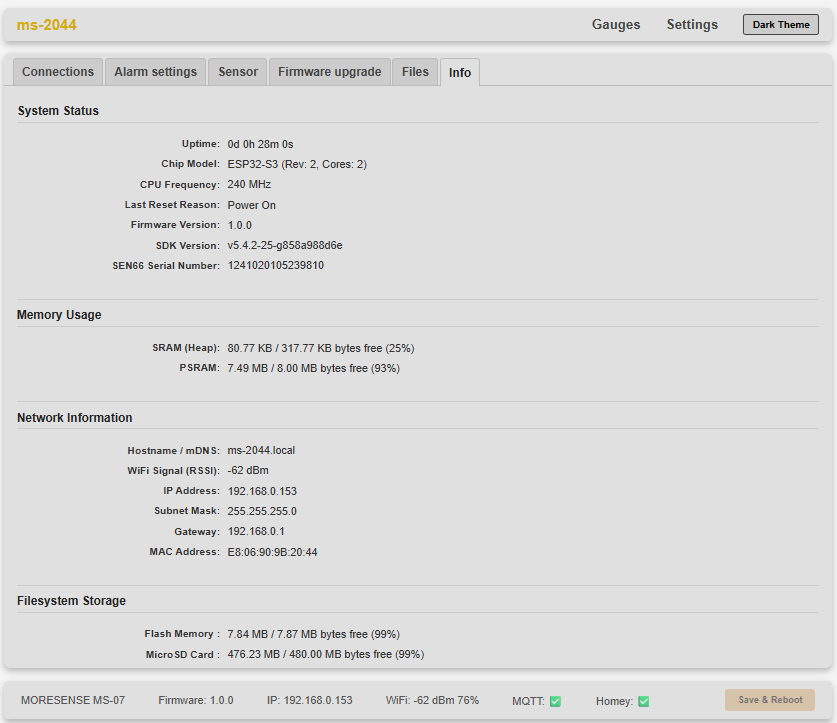

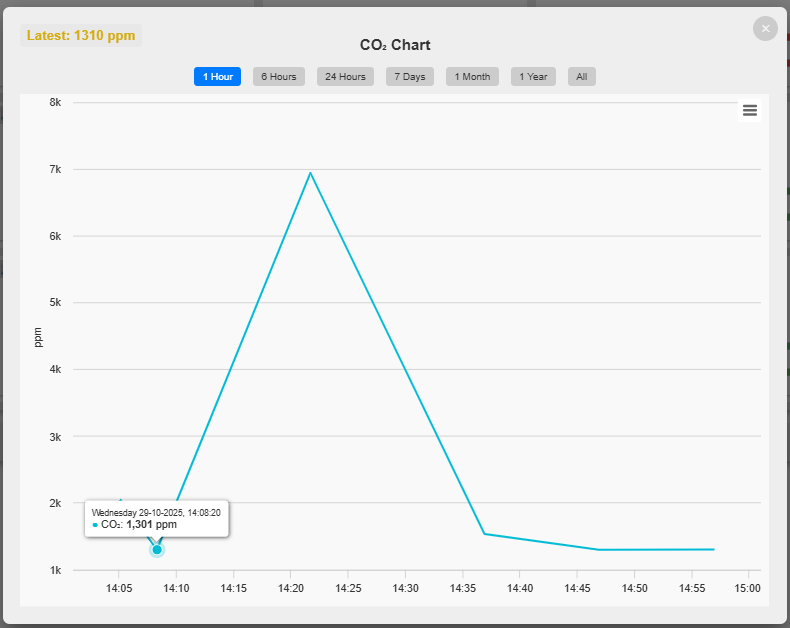

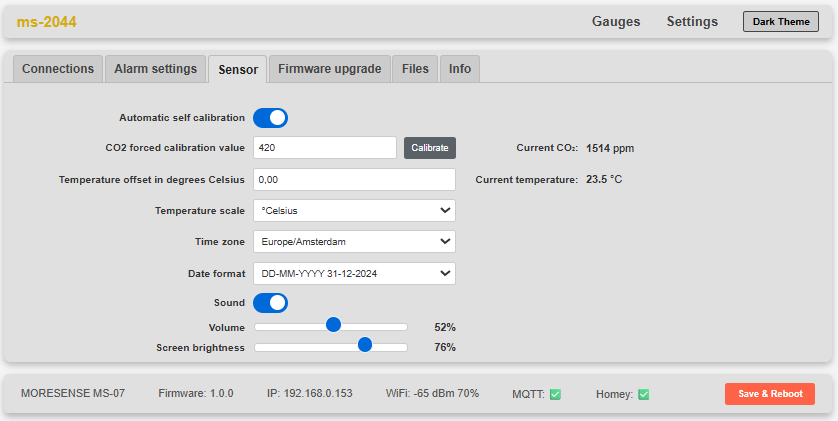

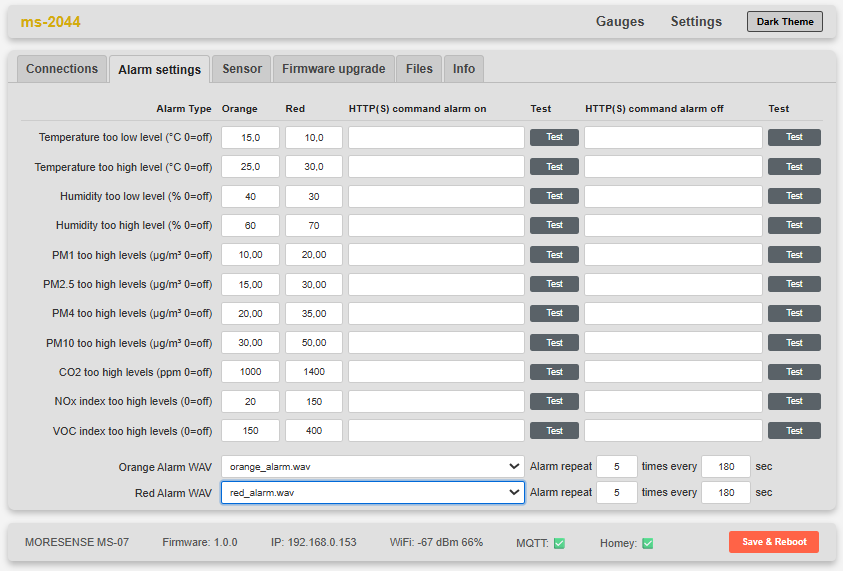

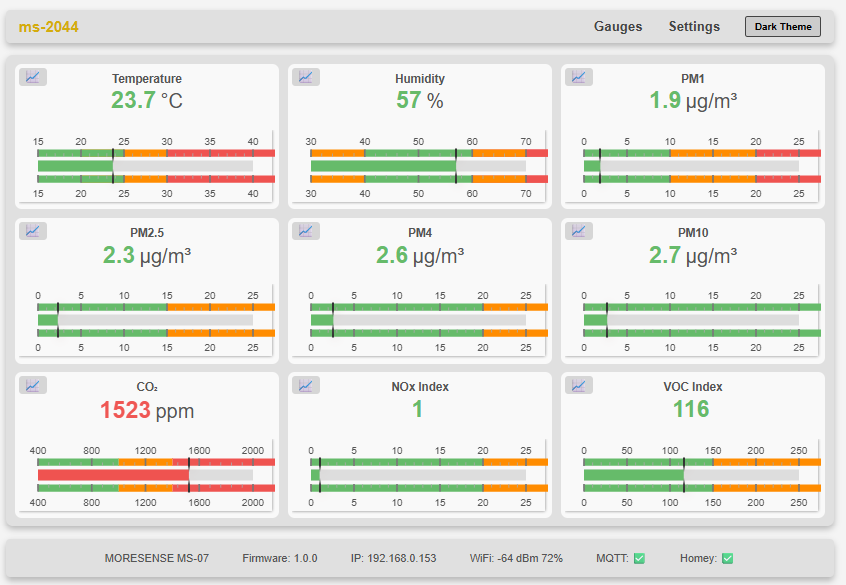

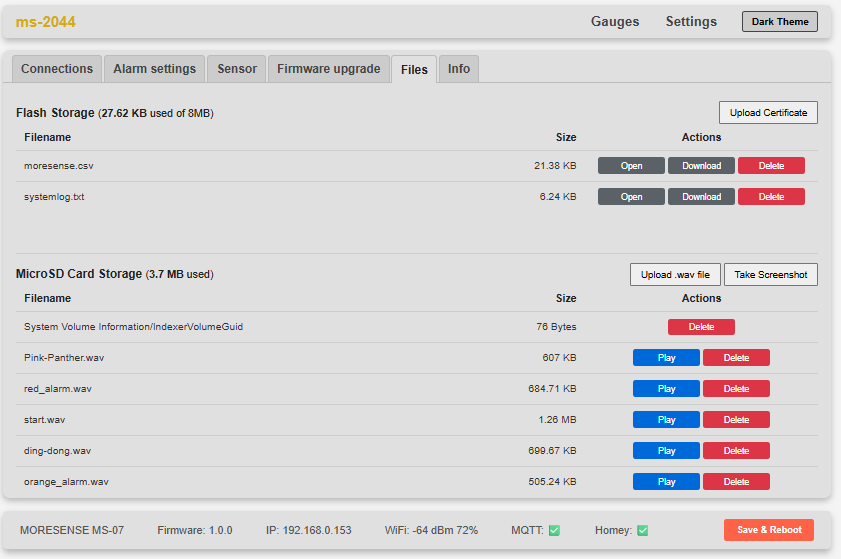

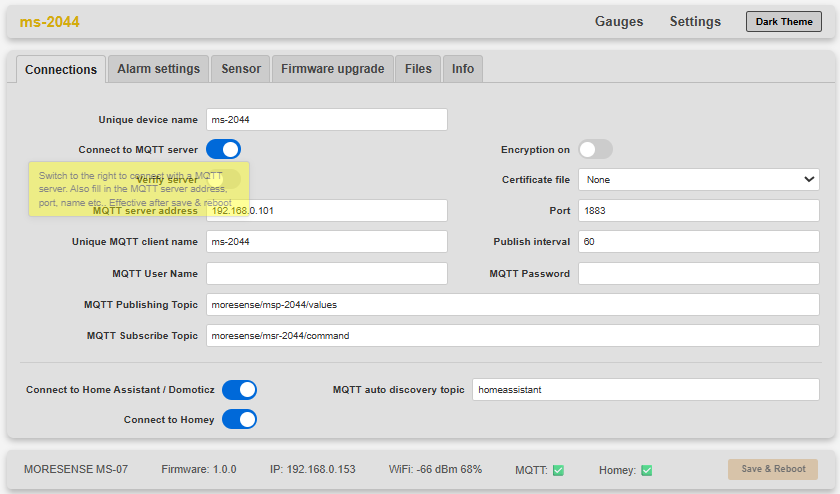

I also added some screenshots of the web interface so you can get an impression of all the options.
Please let me know if you have any further questions.
